Your TV, laptop, smart fridge: gone. Not from a break-in. Not from a fire. Only a single invisible burst of power that lasts less than a millisecond long. Sounds dramatic, right? But it occurs more than people believe. And the fix? A tiny box that the majority of houses in the UK still lack.

Let's talk about the Type 2 SPD. What it is, why it matters and why fitting one is quite simply one of the smartest things you can do for your home.

What Does SPD Mean?

SPD is an abbreviation of Surge Protection Device. It is located within your consumer unit (you fuse box) and serves as a kind of protective shield to the electrics of your home.

The surge protecting device jumps when a power surge strikes. It intercepts the surplus voltage before it can run down your wiring and destroy all that is plugged in. Imagine it as a guardian of your power system. Anything suspicious is attempting to pass, it is halted at the door.

What Makes It "Type 2"?

There are three types (Type 1, Type 2, and Type 3) of surge protecting devices depending on their location of installation and the capacity that they can handle.

Type 1 is heavy-duty. It is installed in structures that have lightning rods or are at high risk of a direct hit, primarily commercial or unprotected country houses.

Most homes require type 2. It is mounted on the main distribution board and safeguards against surges entering the grid or occurring within the system.

Type 3 is a point of use device such as a surge-protected extension lead. It is compatible with a Type 2.

On a typical UK domestic home, a Type 2 SPD is what you would call the primary line of defence.

Where Do Power Surges Actually Come From?

The majority of people imagine a thunderstorm. And lightning, yes, is one of the causes. Yet it is not the only one, and it is not even the most common.

Lightning Electromagnetic Pulse (LEMP)

Once lightning strikes around power lines or around the ground near your house, it sends a shockwave throughout the electrical system. You don't need a direct hit. Even strike a few streets away can do some real damage.

Switching Electromagnetic Pulse (SEMP)

This one surprises people. Large appliances, such as washing machines, fridges, air conditioning units, etc., generate small spikes in the system when they switch on and off. These strikes are recurrent and will gradually wear down your electronics, eventually killing them.

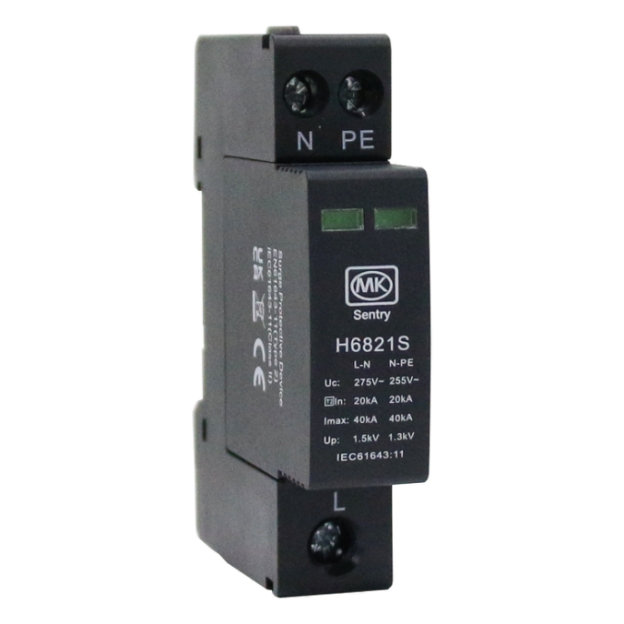

Both are protected by a quality surge protection device, such as the MK Circuit Protection 40kA Type 2 SPD. It handles LEMP and SEMP: full-circle protection in one compact unit.

Why UK Homes Need One Right Now

The 18th Edition Wiring Regulations (BS 7671) in the UK shifted the game. In new and rewired installations, surge protection is now a mandatory requirement.

An SPD must be fitted where a power surge could:

• Bring about severe harm or death.
• Interrupt public services.
• Cause an obstruction of commercial or industrial activity.
• Impact a high population within a building.

In plain terms? Most homes and almost every business property now qualifies. If you have a new consumer unit being installed, your electrician must suggest one.

And if your home was wired before these regulations came into effect? Retrofitting it is still well worth it. No surge protection on older wiring makes it more vulnerable, not less.

What's Actually at Risk Without One?

Let's get real. The following is what is at stake in a typical home in the UK that has no surge-protection:

• Smart TVs (£400-£2,000+).
• Laptops and computers (£500-£2,000+).
• Smart home hubs and home routers.
• Digital-controlled washing machines and dishwashers.
• EV chargers.
• Battery storage systems and solar inverters.

One surge. One split second. Any of them or even all of them may be ruined.

The cost of a good Type 2 SPD? Even a small percentage of the cost of replacing any one of those appliances.

What to Look for in a Type 2 Surge Device

Not every surge device is equal. These are the points to consider before purchasing:

• Discharge current rating: Look for a maximum discharge current of at least 40kA. The MK Circuit Protection 40kA Type 2 SPD hits exactly that, with a nominal discharge current of 20kA and a max of 40kA.
• BS EN 61643 / IEC 61643-11 compliance: This is the standard your SPD needs to meet for UK installations. Don't settle for anything without it.
• UKCA and CE marked: These marks confirm the product has been tested and approved for the UK market.
• Status indicator: A built-in light lets you or your electrician check at a glance that the device is still doing its job. Small detail, really useful.
• DIN rail mounting: Makes for a clean, straightforward installation inside a standard consumer unit.
• Earthing compatibility: It should work with TNS, TNC, and TT earthing arrangements, which covers the vast majority of UK homes.

How Does It Get Installed?

A Type 2 surge protection device fits inside your existing consumer unit. It takes up just one module of space, so it slots in neatly without crowding your existing breakers.

Installation is done by a qualified, Part P registered electrician. It's not a DIY job, but it is a quick one. Most installs are done in under an hour.

Once it's fitted, it works silently every day. No buttons. No settings. It just does its job without you ever needing to think about it.

The Bottom Line

Power surges do exist, they are common and they are costly when they occur. The most sensible and economical means of securing the electrics in your home and all that is attached to them is a Type 2 SPD.

According to Meteor Electrical, one of the most important aspects of ensuring that your home and the people are safe is ensuring that your electrical installation is not ruined.

It's not a luxury. It's not overkill. The Wiring Regulations say it. Qualified electricians recommend it. And once you understand what a single surge can do, you'll see why.

If your home doesn't have one yet, talk to a registered electrician and ask about fitting a Type 2 surge protection device in your consumer unit. Small upgrade. Big peace of mind.
